Acid Scrubber plant is use for Diamond Industries, Chemical Industries, Laboratory and Pharmacutical industries for nuteralise acid fumes, smell, harmfull chemical gas etc.

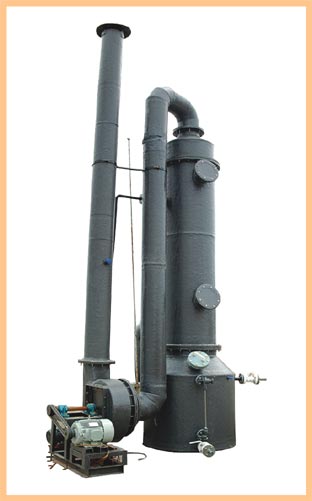

Acid Scrubber :
Made : P.P. + Fiber Reinforced Plastic (FRP)
Size : 7 Ft. Height X 2 Ft. Dia
2" PP Pall Ring packing - 3000 Nos.
Packing Support
Distribution System
Exhaust Stack

Caustic Re-circulation Pump
Capacity of Pump : 1 HP
RPM : 2800
Type : PP centrifugal Pump
Make : Navjyot / Compton Graves

Caustic Re-circulation Tank
Capacity : 500 Lit.
Make : PP- FRP with level indicator
System : Discharge & Inlet Valves

Piping
Miscellaneous Piping (PPFRP and PVC)
Length : 40 Ft.

Acid Fume Suction Blower
Body Made of : PP FRP Casing
Impeller : PP Impeller
Capacity of Motor : 5 HP
RPM of Motor : 1400 rpm
Motor Make : Navjyot / Compton Graves

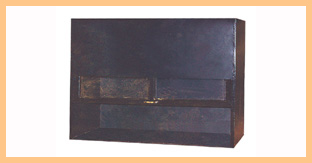

Boiling Cabinet
Complete Made : FRP/PP
Size of Boiling Cabinet : 3 Ft. Height X 5 Ft. Width

Platform (As per Requirement)
Made : FRP/PP
Size of Platform : 26" deep X 2.5 ft. Height X 6 ft. Width.
